Вид оплаты:L/C,T/T,D/P,D/A,Paypal
Инкотермс:FOB,CFR,CIF
Количество минимального заказа:1 Piece/Pieces
транспорт:Ocean,Land,Air
$0.1-1 /Piece/Pieces
марка: HY или OEM
Actuator: Manual

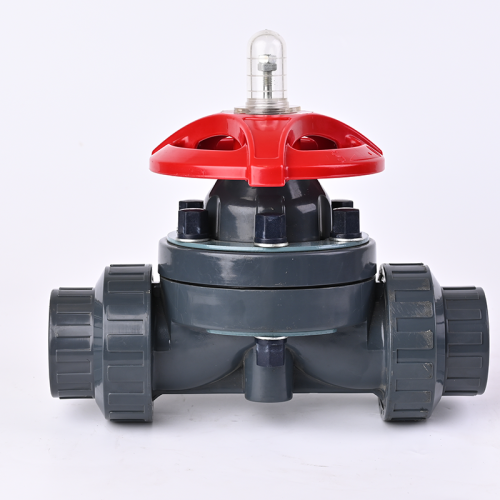

Связь: Мембранный клапан
Материал: ПВХ
Давление: PN 1,0MPA
Flow Direction: Bidirectional
Применение: Flow Control
Стандартный: DIN
Приложение: Химическая промышленность
транспорт: Ocean,Land,Air
Вид оплаты: L/C,T/T,D/P,D/A,Paypal
Инкотермс: FOB,CFR,CIF


| UPVC True Union Parts&Material | ||
| No. | Parts | Materials |
| 1 | gauge cover | PC |
| 2 | stud nut | steel,stainless steel |
| 3 | hand wheel | ABS,FRPP |
| 4 | Bonnet | UPVC |
| 5 | sleeve | cast iron,copper alloy |
| 6 | Board | Plastc-coated steel,stainless steel |
| 7 | Stud Bolt &Nut | steel&plastic nuts,stainless steel |
| 8 | Union Nut | UPVC |
| 6 | Body | UPVC |
| 10 | O-Ring | EPDM,FPM |
| 11 | Endconnector | UPVC |
| 12 | Stem | steel,stainless steel,copper alloy |
| 13 | compressor | PVDF,CPVC,cast iron |
| 14 | Cushion | EPDM |
| 15 | Diaphragm | EPDM,FPM,FEP,PFA,PTFE |
| UPVC DIN True Union Dimensions Table | |||||
| DN | L1 | d | Z | L | |
| socket end | Thread end | ||||
| HG/DIN | HG/DIN | ||||
| 15 | 110 | 20 | Rcl/2 | 17 | 155 |
| 20 | 110 | 25 | Rc3/4 | 24 | 165 |
| 25 | 110 | 32 | Rc1 | 28 | 173 |
| 32 | 175 | 40 | Rc1-1/4 | 29 | 248 |
| 40 | 175 | 50 | Rc1-1/2 | 35 | 257 |
| 50 | 200 | 63 | Rc2 | 39 | 292 |
| DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material |
|||||
| UPVC JIS True Union Dimensions Table | |||||
| DN | L1 | d | Z | L | |
| socket end | Thread end | ||||
| JIS | JIS | ||||
| 15 | 110 | 22 | PT1/2 | 17 | 155 |
| 20 | 110 | 26 | PT3/4 | 24 | 165 |
| 25 | 110 | 32 | PT1 | 28 | 173 |
| 32 | 175 | 38 | PT1-1/4 | 29 | 248 |
| 40 | 175 | 48 | PT1-1/2 | 35 | 257 |
| 50 | 200 | 60 | PT2 | 39 | 292 |
| DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material |
|||||
| UPVC ANSI True Union Dimensions Table | |||||
| DN | L1 | d | Z | L | |
| socket end | Thread end | ||||
| ANSI | ANSI | ||||
| 15 | 110 | 21.3 | NPT1/2 | 17 | 155 |
| 20 | 110 | 26.7 | NPT3/4 | 24 | 165 |
| 25 | 110 | 33.4 | NPT1 | 28 | 173 |
| 32 | 175 | 42.2 | NPT1-1/4 | 29 | 248 |
| 40 | 175 | 48.3 | NPT1-1/2 | 35 | 257 |
| 50 | 200 | 60.3 | NPT2 | 39 | 292 |
| DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material |
|||||
